Jenkins 部署

基础环境

系统：AlmaLinux 9
Java：21.0.9
Jenkins：2.528.3

Jenkins 官方安装文档：Installing Jenkins

主要文档：WAR file

这里部署 Jenkins LTS（版本号：2.528.3），使用 Java 21（版本号：21.0.9）

部署 JDK

查看最新版本号：Java Downloads

cd /data/septvean/bash/java

bash -x deploy-jdk-21.sh 21.0.9

/usr/local/jdk/21.0.9/bin/java -version

# java version "21.0.9" 2025-10-21 LTS
# Java(TM) SE Runtime Environment (build 21.0.9+7-LTS-338)
# Java HotSpot(TM) 64-Bit Server VM (build 21.0.9+7-LTS-338, mixed mode, sharing)

部署 Jenkins

查看最新版本号：Jenkins Downloads

# 安装依赖包
dnf install -y git git-core dejavu-sans-fonts fontconfig freetype xorg-x11-server-Xvfb

# 创建用户
useradd -r -s /sbin/nologin jenkins

# 创建目录
#   app: Jenkins War包 目录
#   builder: 编译工具 目录
#   data: Jenkins HOME 目录
#   log: Jenkins 日志
mkdir -pv /data/jenkins/{app,builder,data,log}

# 设置代理
# export http_proxy=http://192.168.101.200:1080; export https_proxy=http://192.168.101.200:1080;

# 下载 War 包
cd /data/jenkins/app
wget -c -O jenkins-2.528.3.war https://get.jenkins.io/war-stable/2.528.3/jenkins.war
ln -svf jenkins-2.528.3.war jenkins.war

# 创建日志文件
touch /data/jenkins/log/{error.log,run.log}

# 设置权限
chown -R jenkins:jenkins /data/jenkins

# 设置环境变量
# export JENKINS_HOME='/data/jenkins/data'

# 启动 (端口 8200, 前缀 /jenkins) 用于测试
# /usr/local/jdk/21.0.9/bin/java \
# -jar jenkins.war \
# --httpPort=8200 \
# --prefix=/jenkins

# 其它参数
# java -jar jenkins.war --help

# 创建 service
#
# JVM 参数根据实际情况配置
#
#   Environment="JAVA_OPTS='-server -Xms256m -Xmx512m'"
#
# 启动参数
#
#   httpListenAddress 设置为 0.0.0.0
#   httpPort 设置为 8200
#
# 或者 httpListenAddress 设置为 127.0.0.1, 使用 Nginx 反向代理
#
#   ExecStart=/usr/local/jdk/21.0.9/bin/java -jar jenkins.war --httpListenAddress=127.0.0.1 --httpPort=8200 --prefix=/jenkins
tee /etc/systemd/system/jenkins.service <<'EOF'
[Unit]
Description=Jenkins Server
After=network.target

[Service]
Type=simple
User=jenkins
Group=jenkins

# 环境变量
Environment="JENKINS_HOME=/data/jenkins/data"
Environment="JAVA_OPTS='-server -Xms256m -Xmx512m'"

# 工作目录
WorkingDirectory=/data/jenkins/app

# 启动命令
ExecStart=/usr/local/jdk/21.0.9/bin/java -jar jenkins.war --httpListenAddress=0.0.0.0 --httpPort=8200

# 日志输出到文件
StandardOutput=append:/data/jenkins/log/run.log
StandardError=append:/data/jenkins/log/error.log

# 自动重启策略
Restart=always
RestartSec=5s

[Install]
WantedBy=multi-user.target
EOF

# 创建服务
systemctl daemon-reload
systemctl start jenkins
systemctl status jenkins

# ● jenkins.service - Jenkins Server
#      Loaded: loaded (/etc/systemd/system/jenkins.service; disabled; preset: disabled)
#      Active: active (running) since Sat 2026-01-03 21:59:00 CST; 4s ago
#    Main PID: 3822 (java)
#       Tasks: 32 (limit: 209715)
#      Memory: 254.4M (peak: 254.4M)
#         CPU: 7.262s
#      CGroup: /system.slice/jenkins.service
#              └─3822 /usr/local/jdk/21.0.9/bin/java -jar jenkins.war --httpListenAddress=0.0.0.0 --httpPort=8200

# Jan 03 21:59:00 node-201.server.com systemd[1]: Started Jenkins Server.

# 查看 Jenkins 日志
journalctl -u jenkins -f

# 设置为开机启动
systemctl enable jenkins

访问：http://192.168.101.201:8200/

如果添加了 --prefix=/jenkins 参数，则访问 http://192.168.101.201:8200/jenkins/

Nginx 配置

    location /jenkins {

        # 代理
        proxy_pass http://127.0.0.1:8200;

        # 修正 Jenkins 返回的重定向路径
        proxy_redirect 127.0.0.1 $scheme://$host/jenkins;

        # 设置请求头
        proxy_set_header Host $host:$server_port;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;

        # WebSocket
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";

        # 超时设置
        proxy_connect_timeout   3s;
        proxy_send_timeout      300s;
        proxy_read_timeout      300s;

        # 关闭代理缓冲
        proxy_buffering off;

    }

Nginx 加载配置

nginx -t
nginx -s reload

访问：https://devops.v2ep.com/jenkins/

初始化 Jenkins

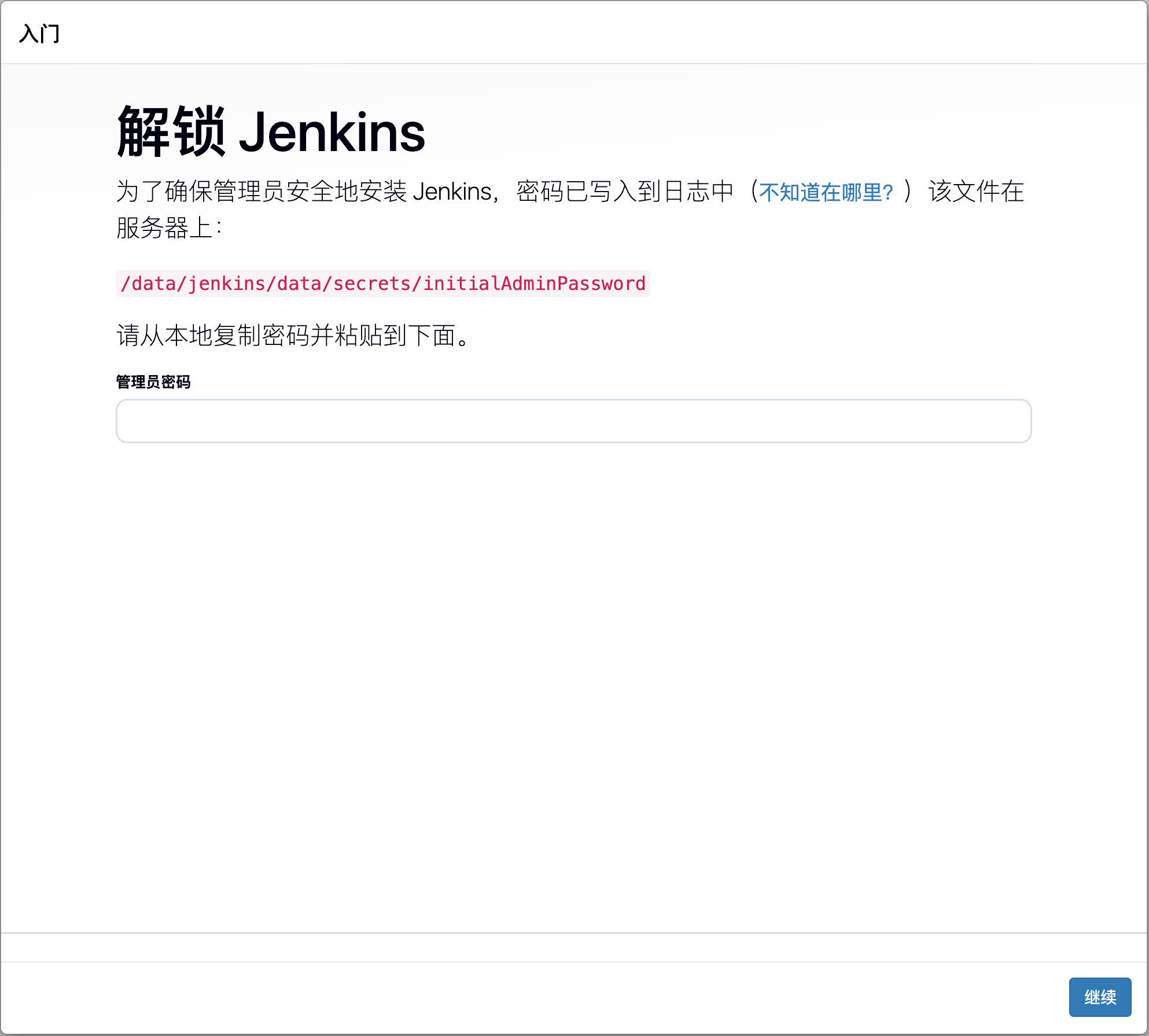

管理员密码

cat /data/jenkins/data/secrets/initialAdminPassword

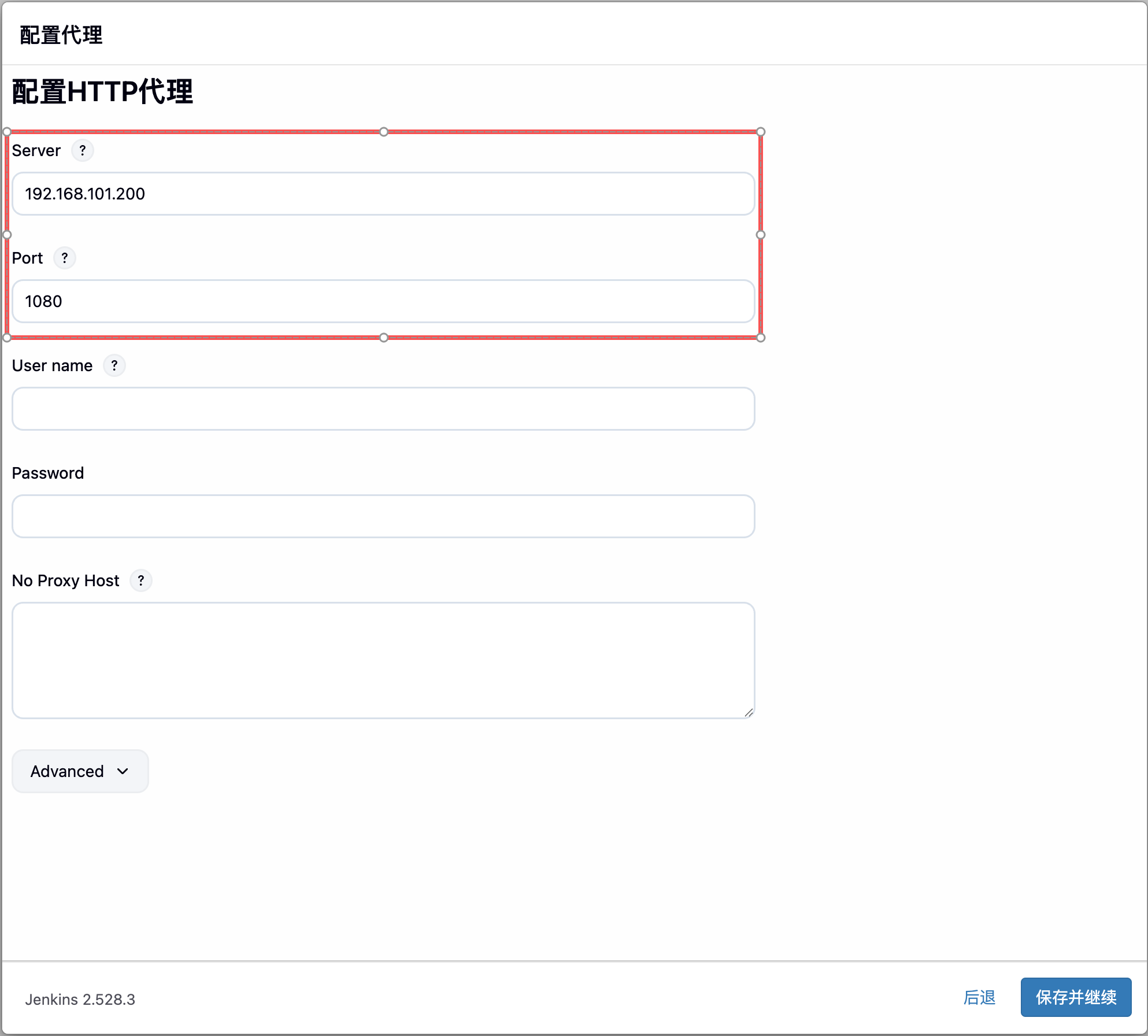

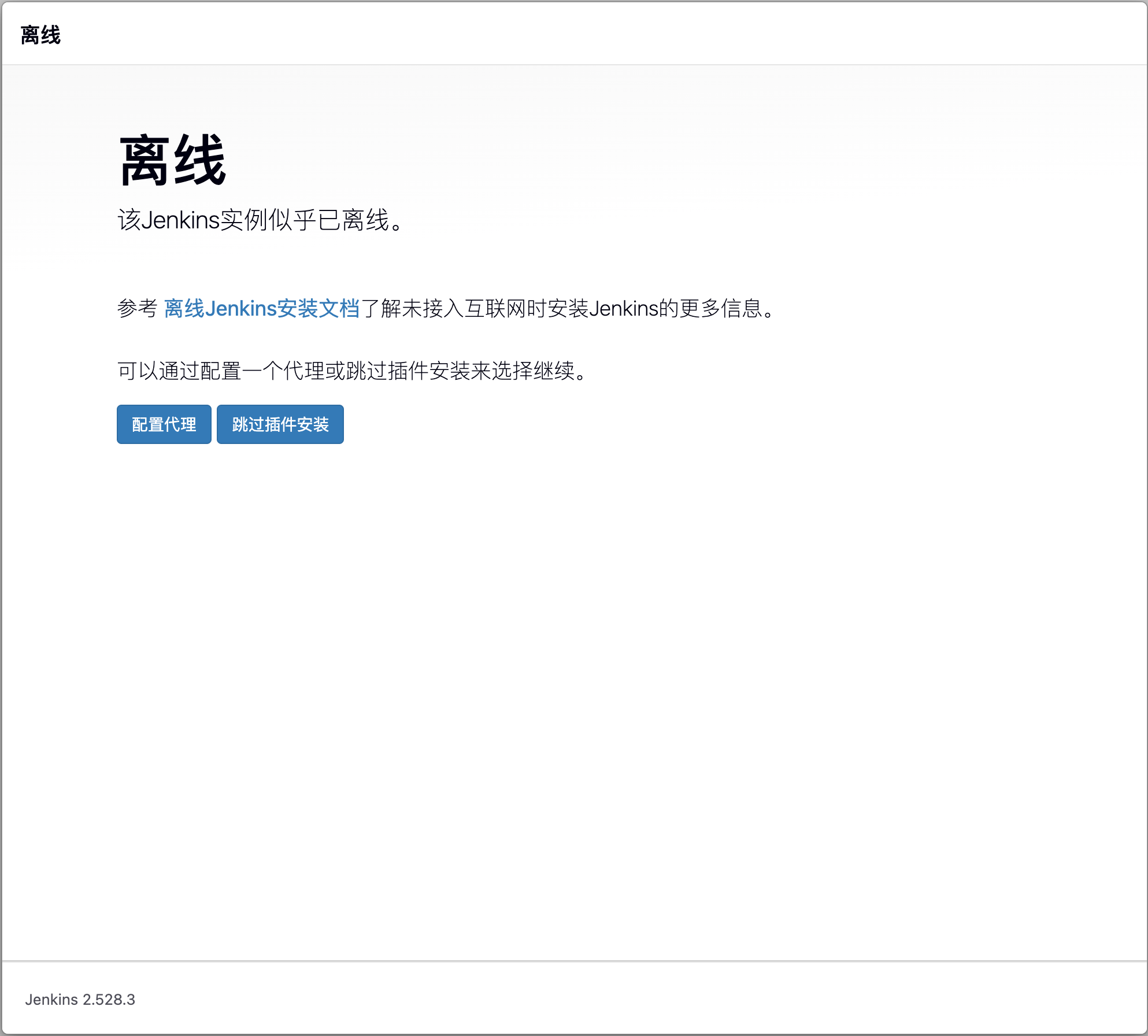

如果提示离线，添加 HTTP 代理。

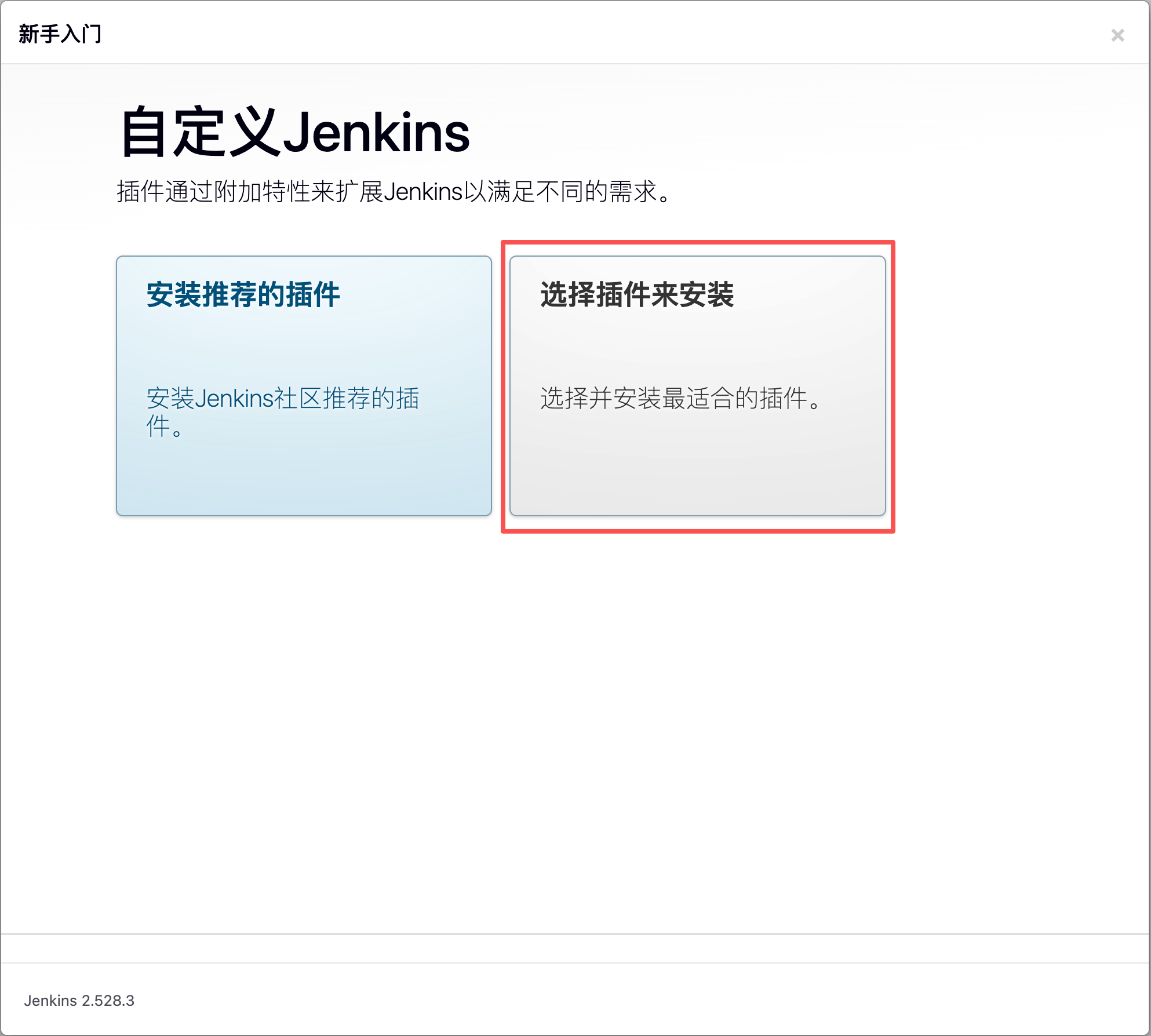

自定义 Jenkins：选择插件来安装

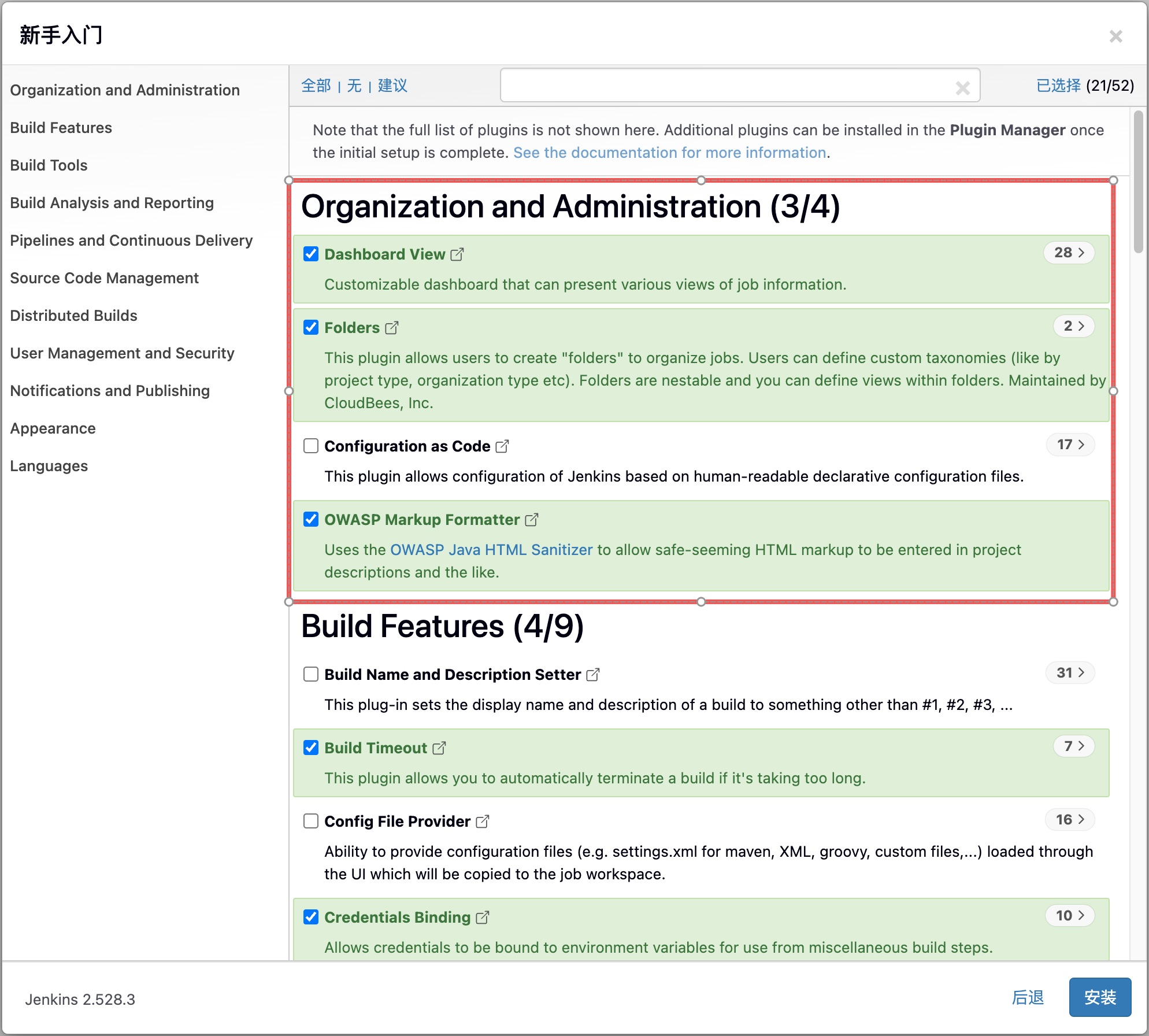

Organization and Administration

Dashboard View
Folders
OWASP Markup Formatter

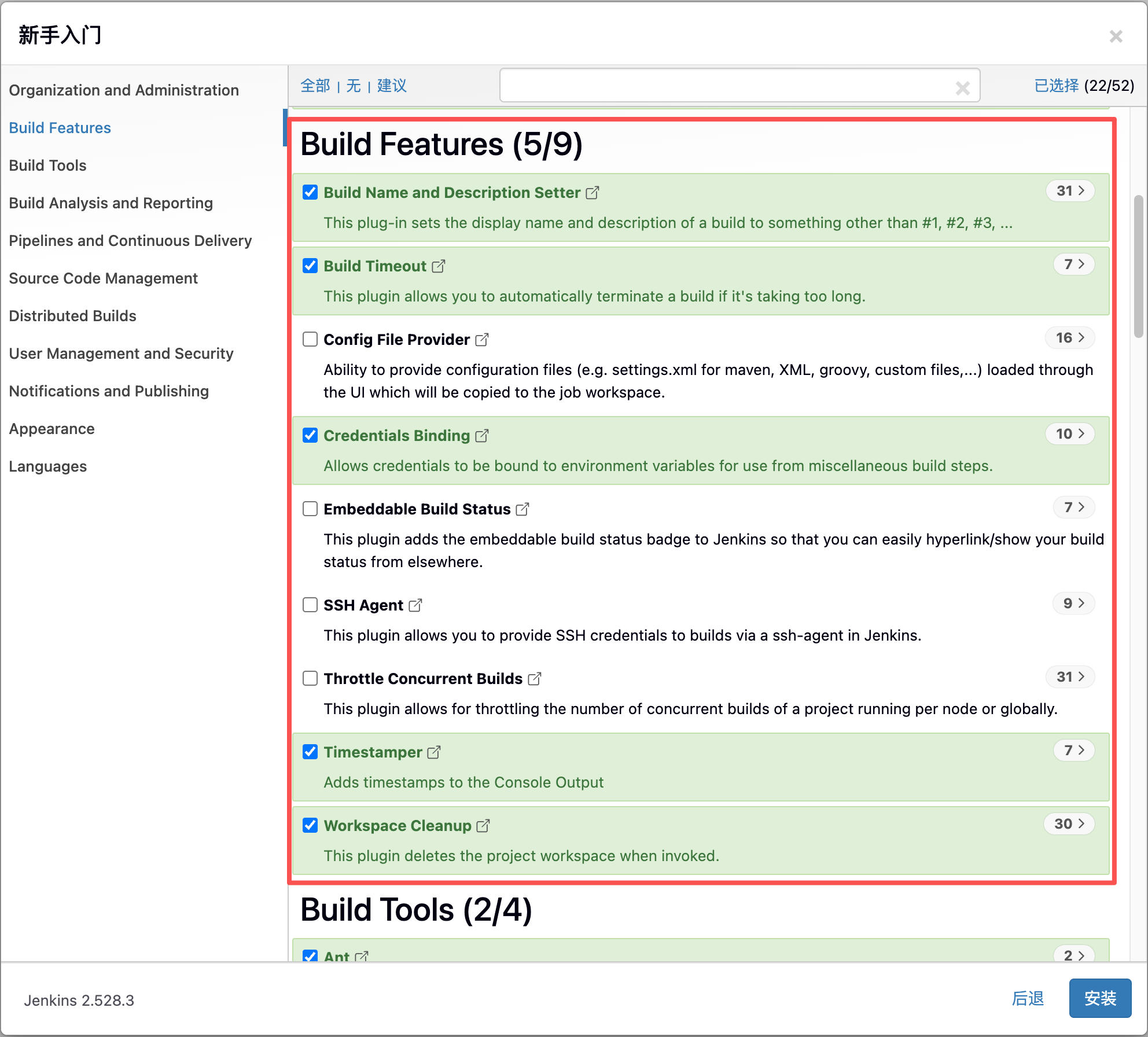

Build Features

Build Name and Description Setter
Build Timeout
Credentials Binding
Timestamper
Workspace Cleanup

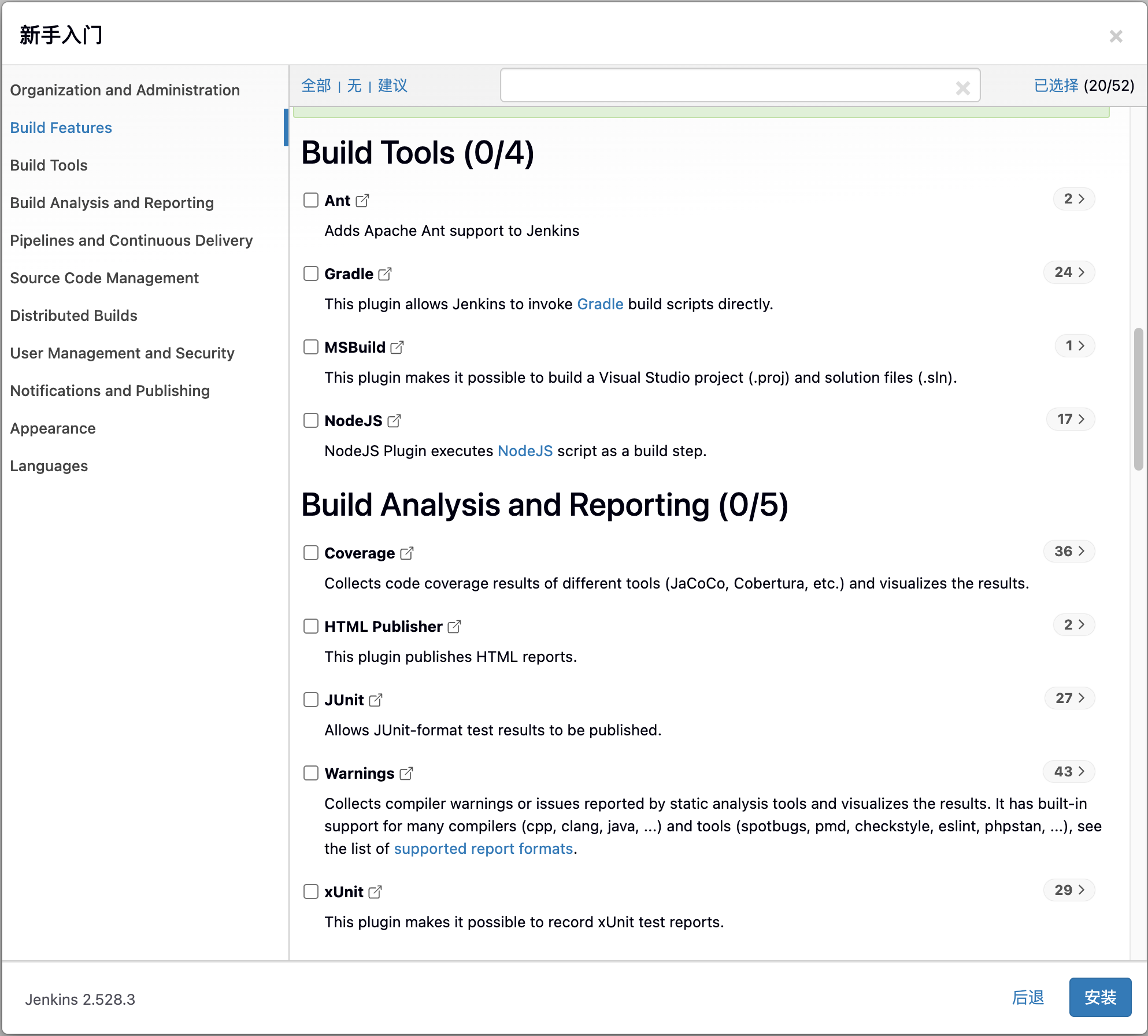

Build Tools

全不选

Build Analysis and Reporting

默认 (全不选)

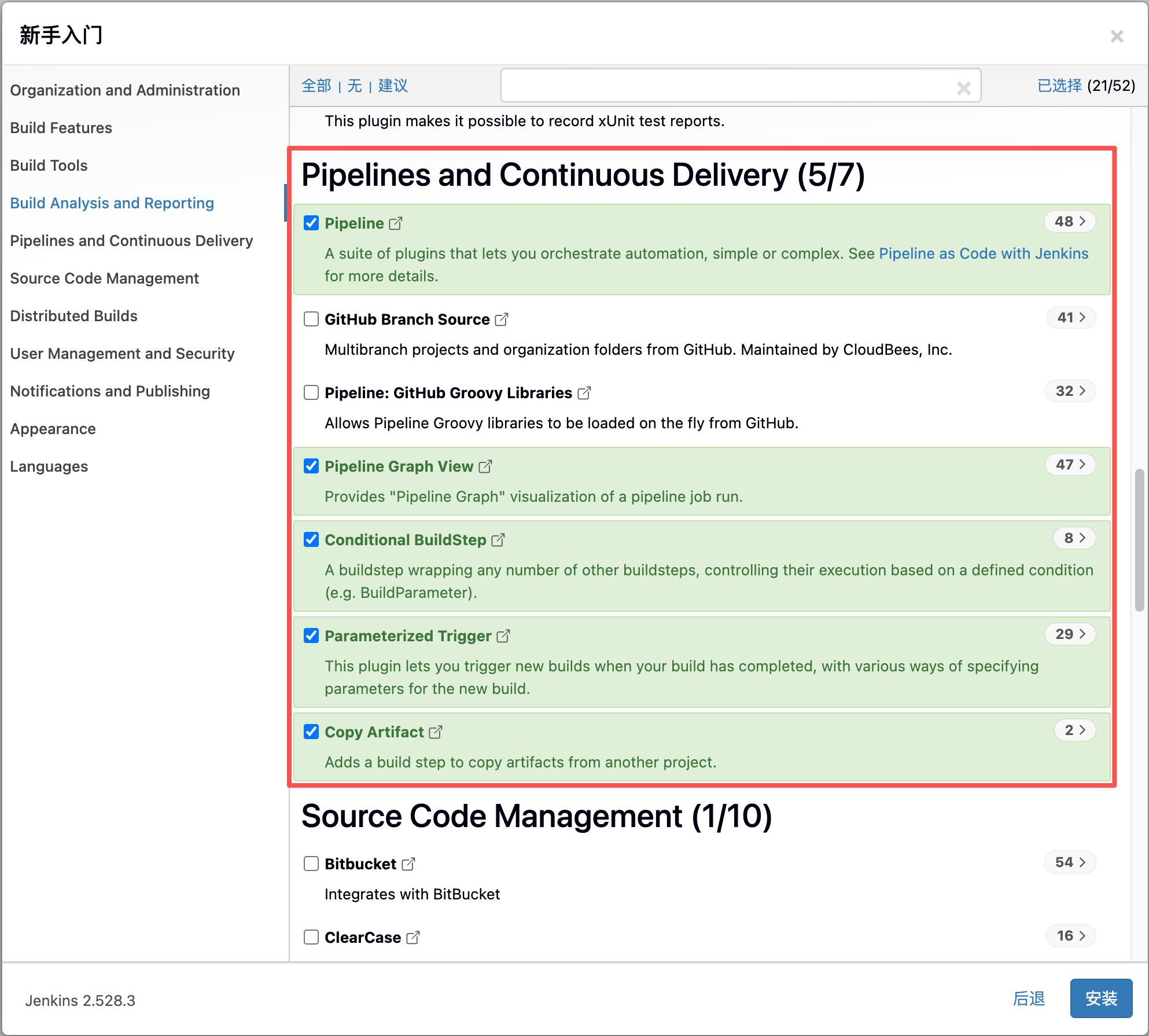

Pipelines and Continuous Delivery

Pipeline
Pipeline Graph View
Conditional BuildStep
Parameterized Trigger
Copy Artifact

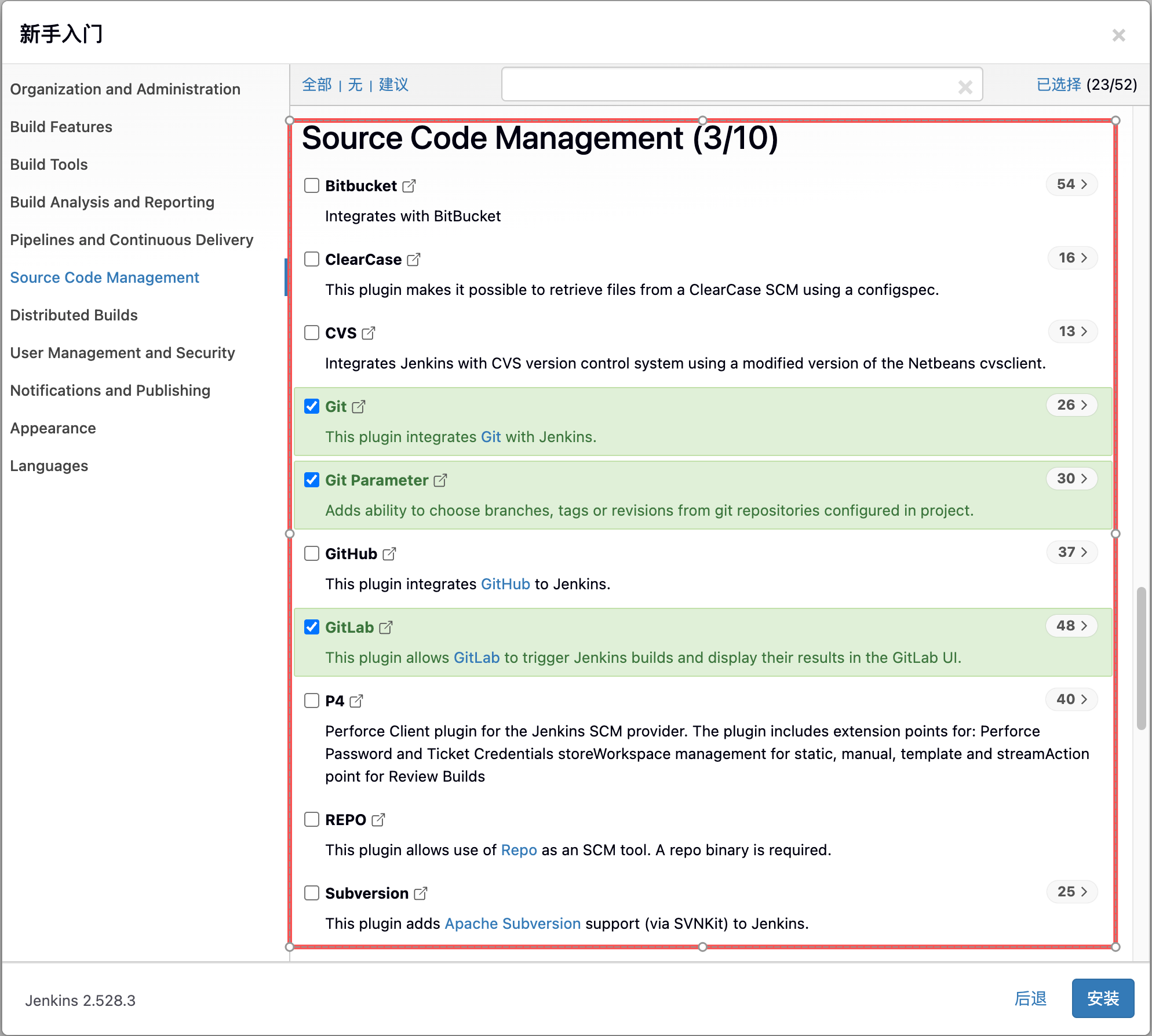

Source Code Management

Git
Git Parameter
GitLab

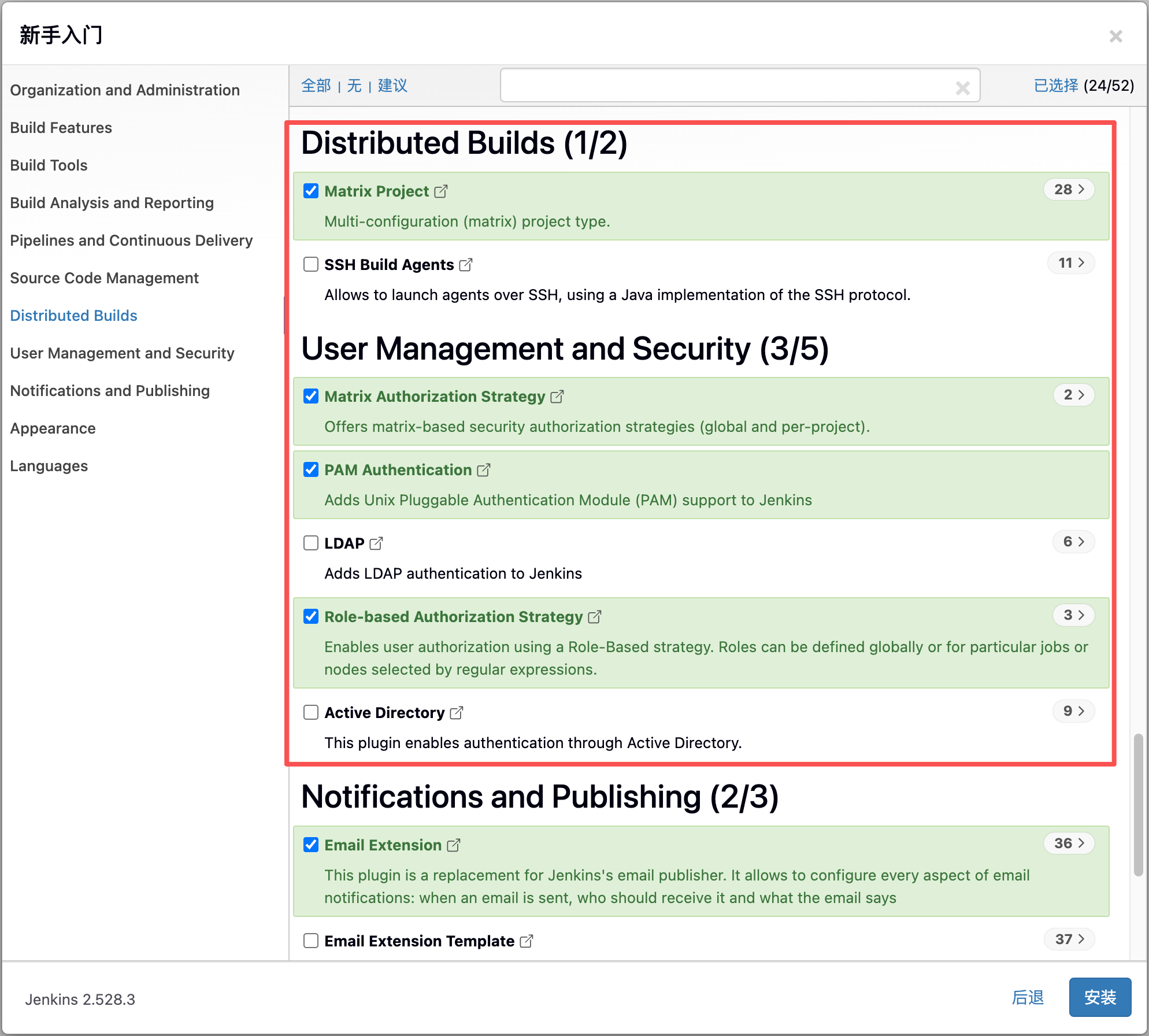

Distributed Builds

单机：全不选
集群：Matrix Project

User Management and Security

Matrix Authorization Strategy
PAM Authentication
Role-based Authorization Strategy

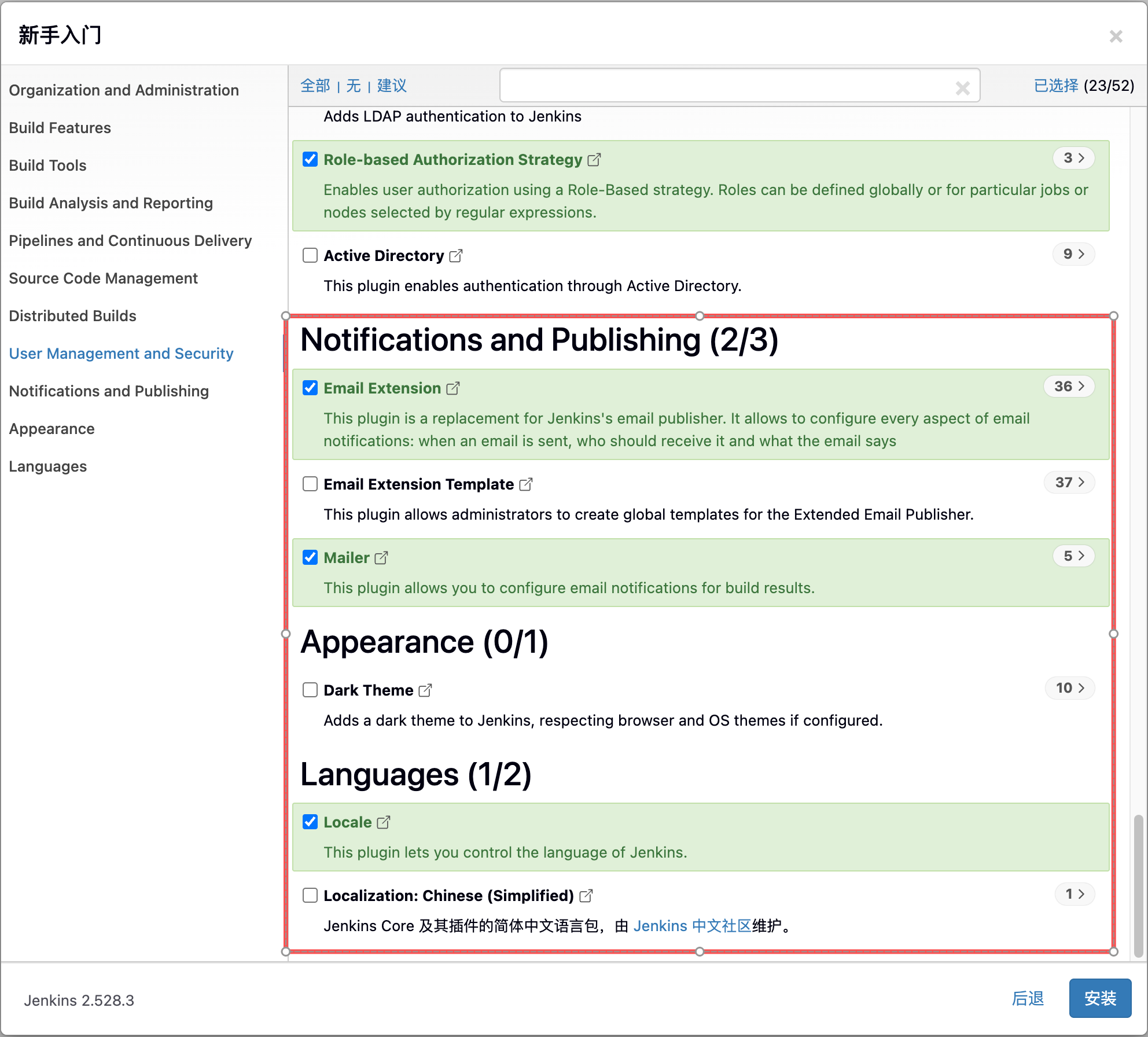

Notifications and Publishing

默认

Appearance

全不选

Languages

Locale
千万不要选择 Localization: Chinese (Simplified) !!

安装

如果有安装失败的，点击“重试”。

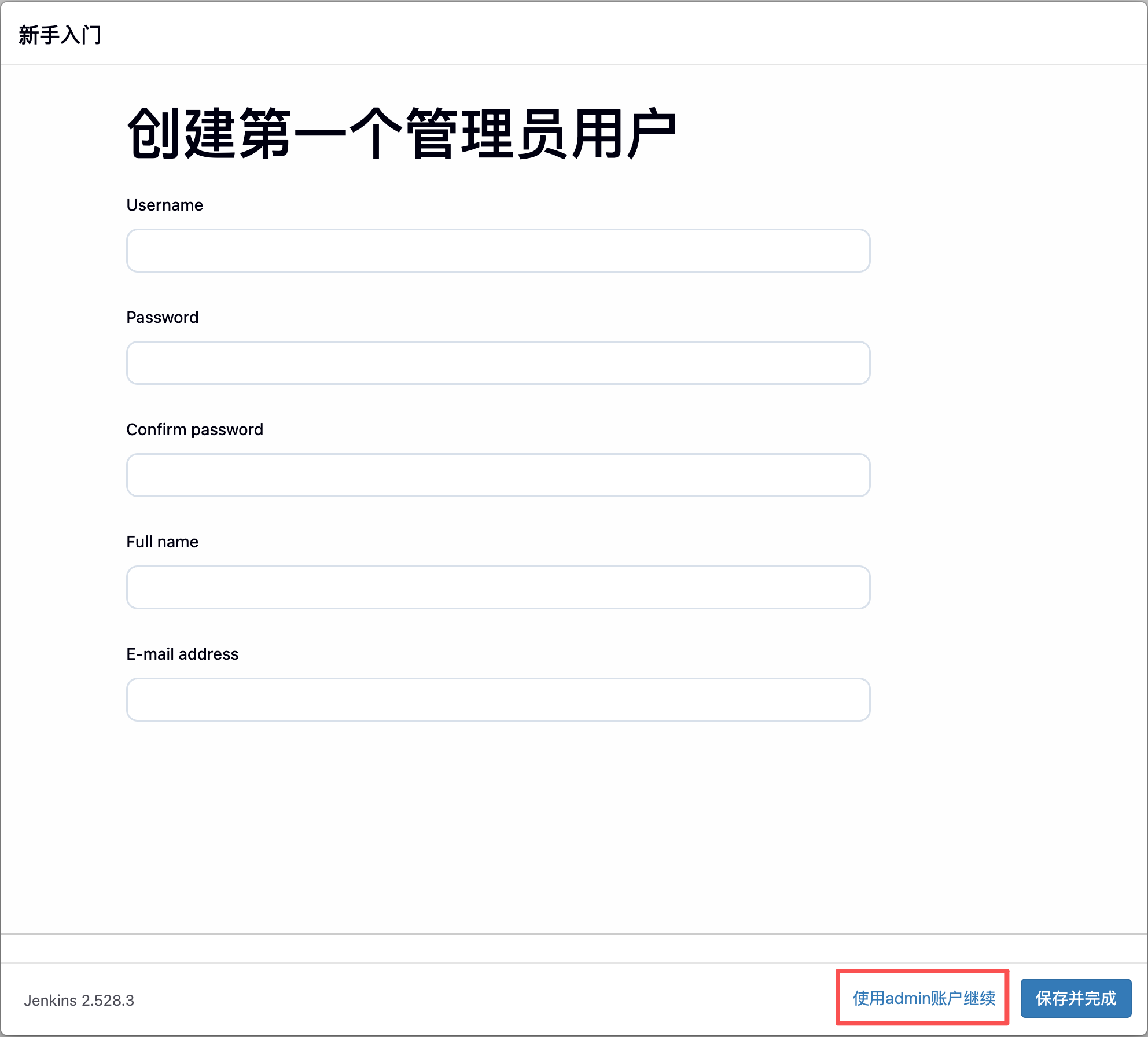

创建第一个管理员用户

不创建 -> “使用admin账户继续”

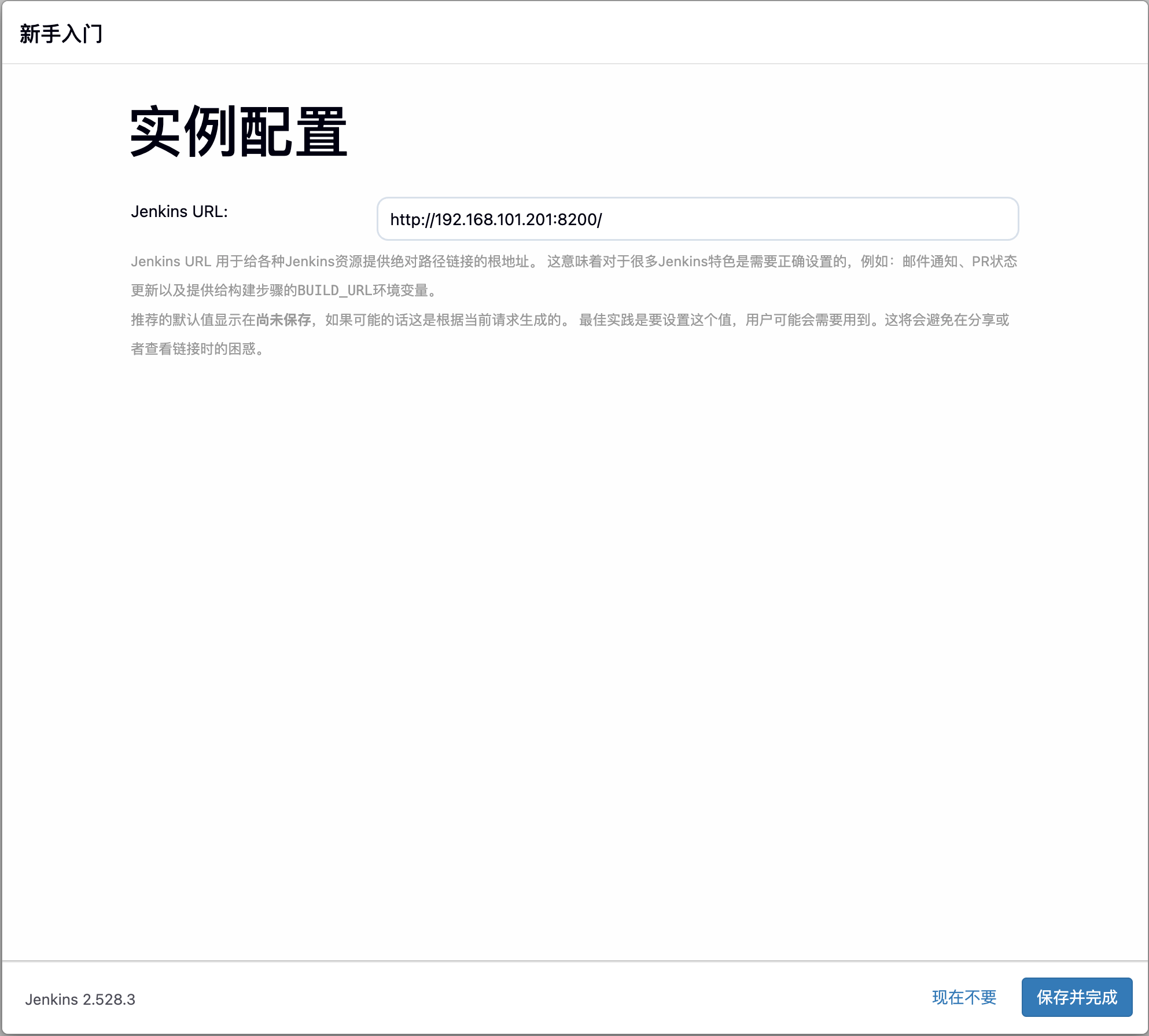

实例配置

Jenkins URL：根据情况修改 (默认)
保存并完成

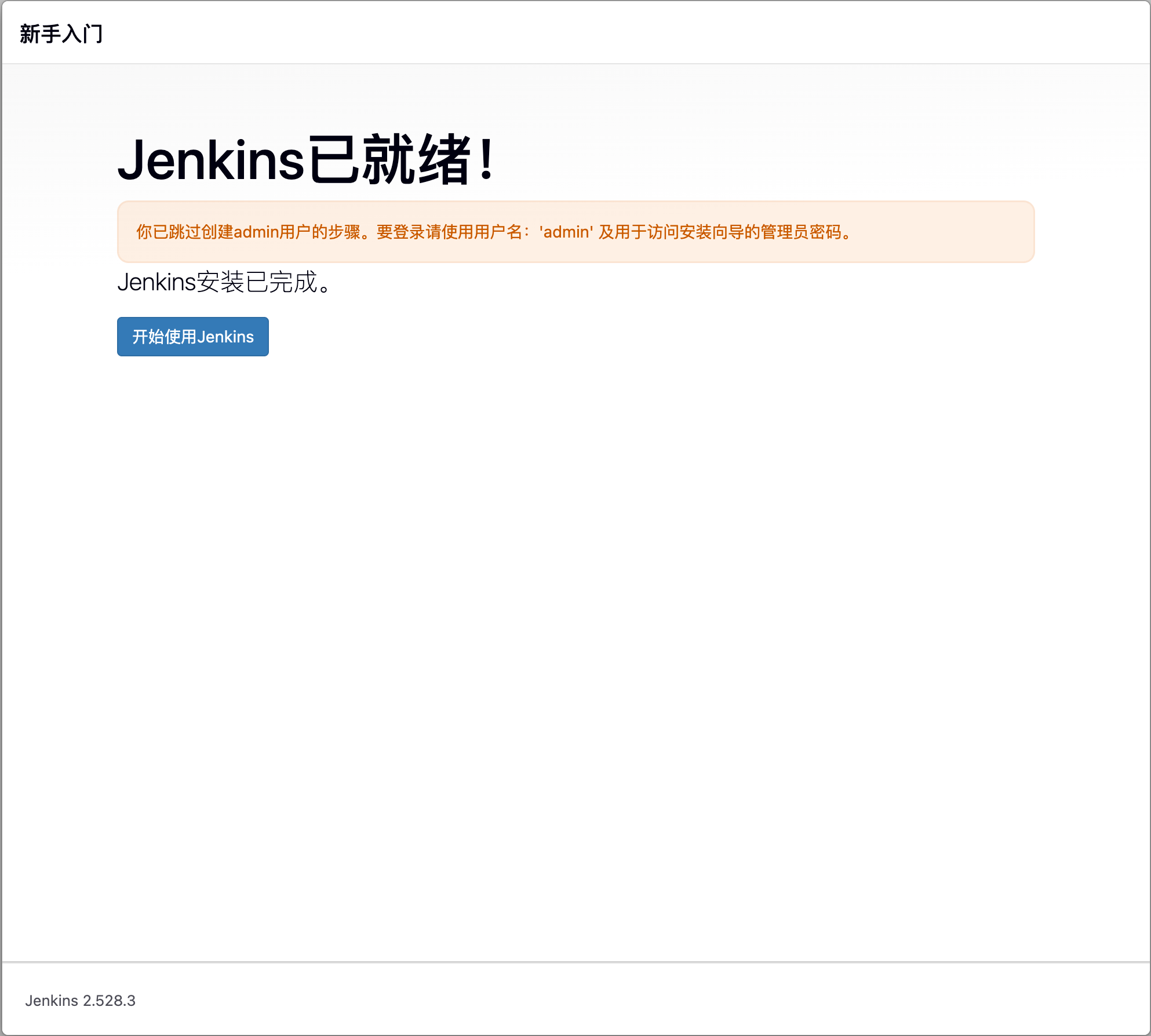

开始使用 Jenkins

配置 Jenkins

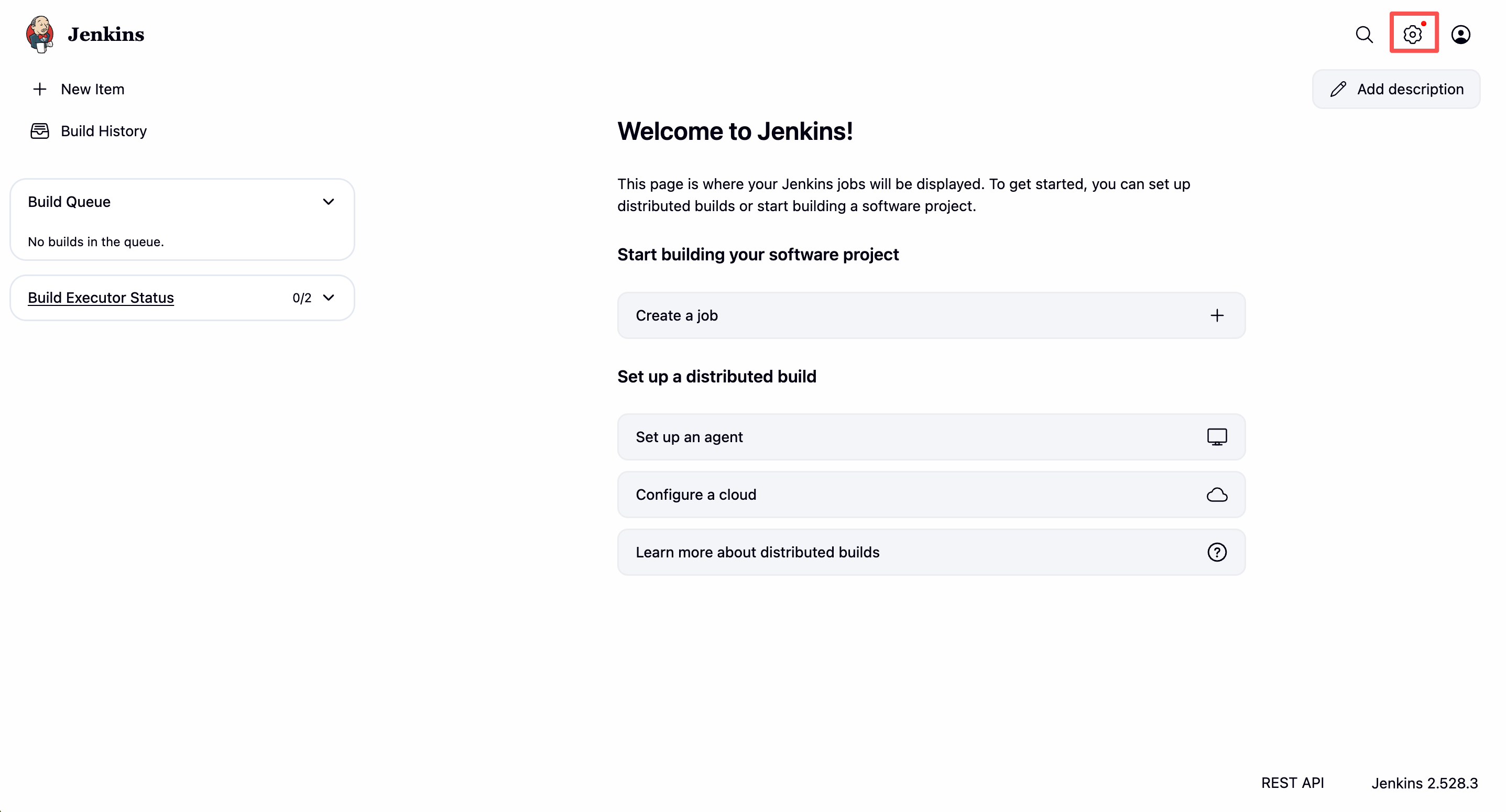

点击右上角的设置图标

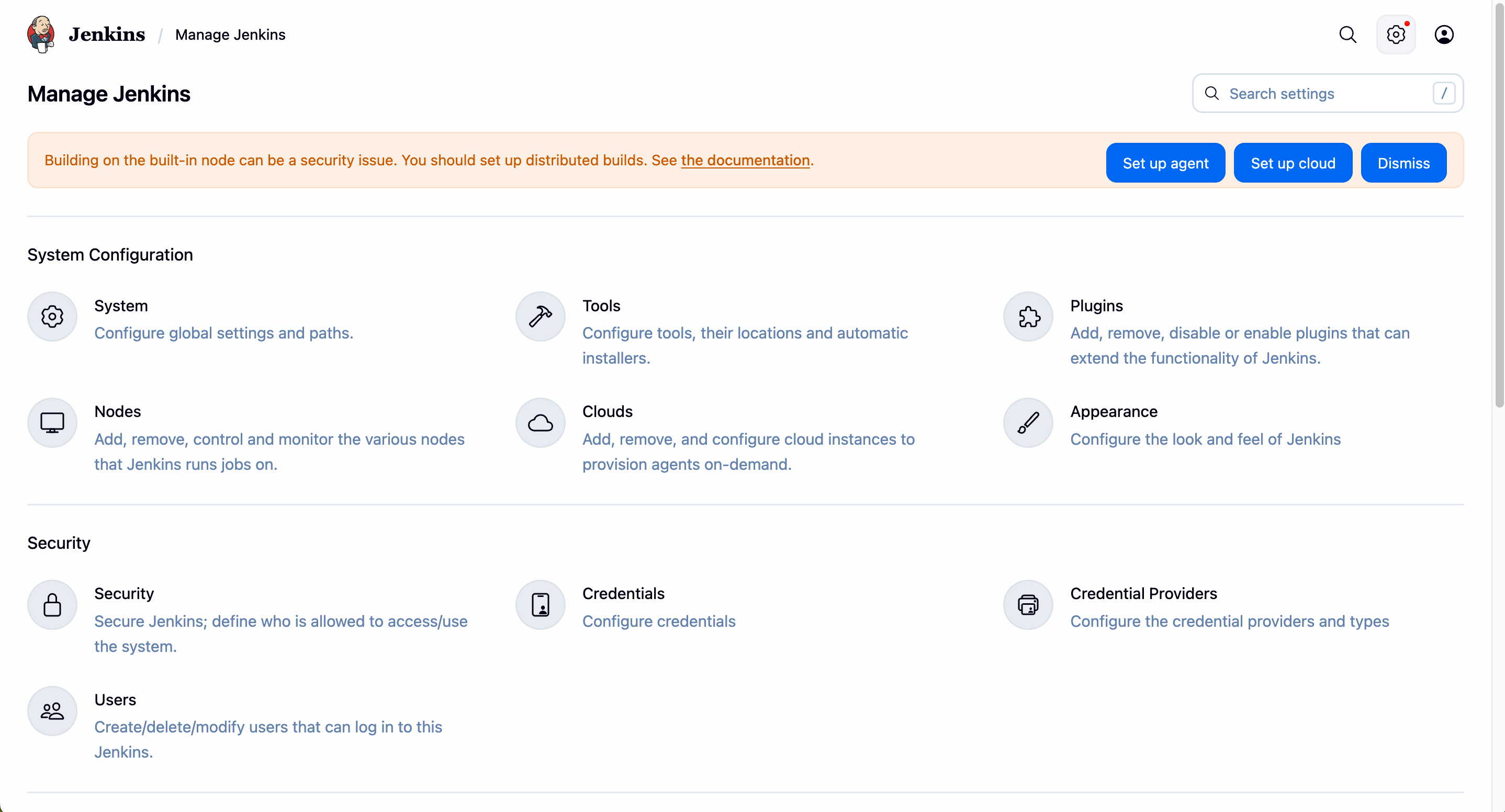

进入管理页面

系统配置

Manage Jenkins -> System Configuration -> System

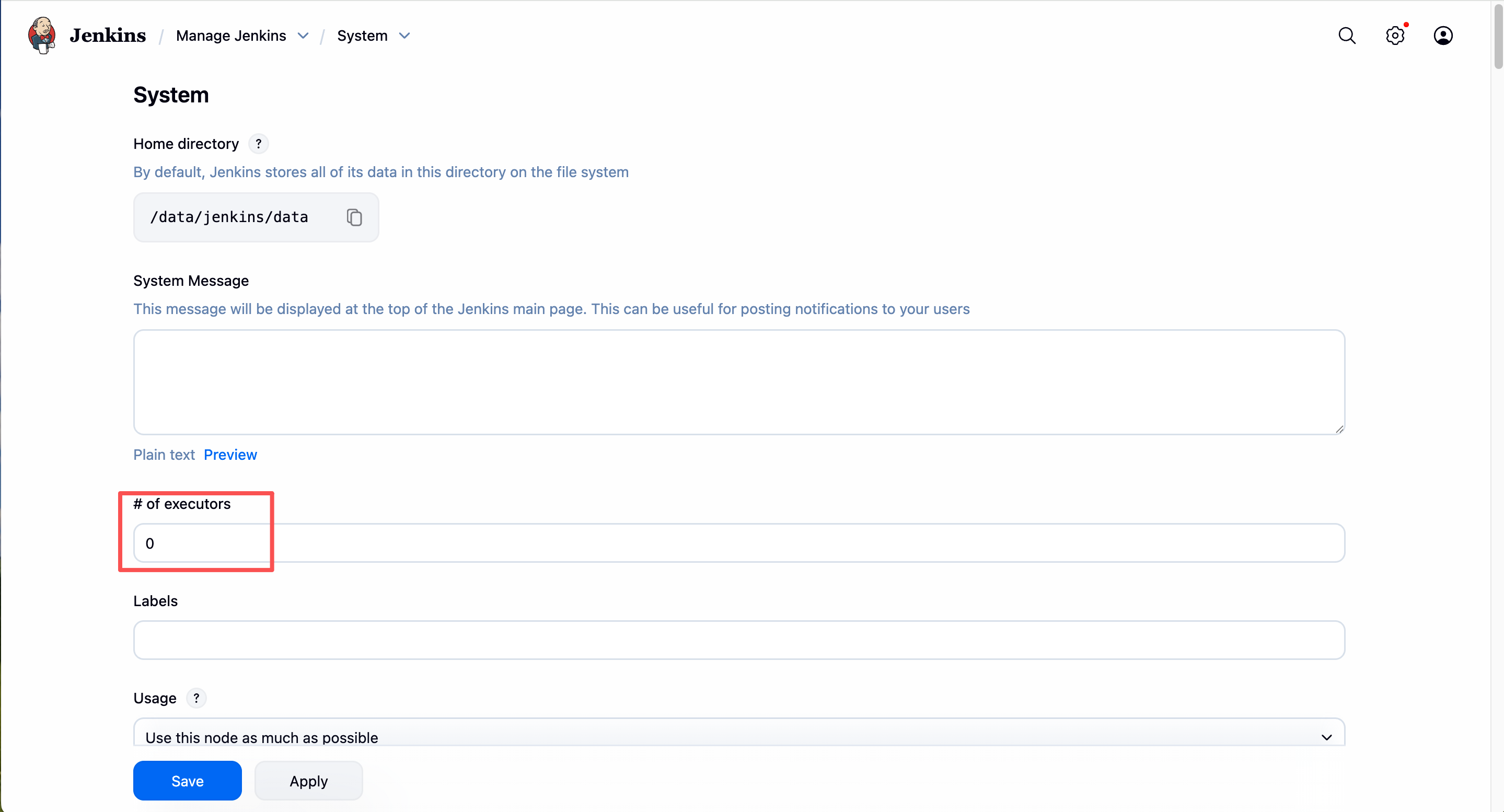

主节点，不执行任务，将 executors 设置为 0

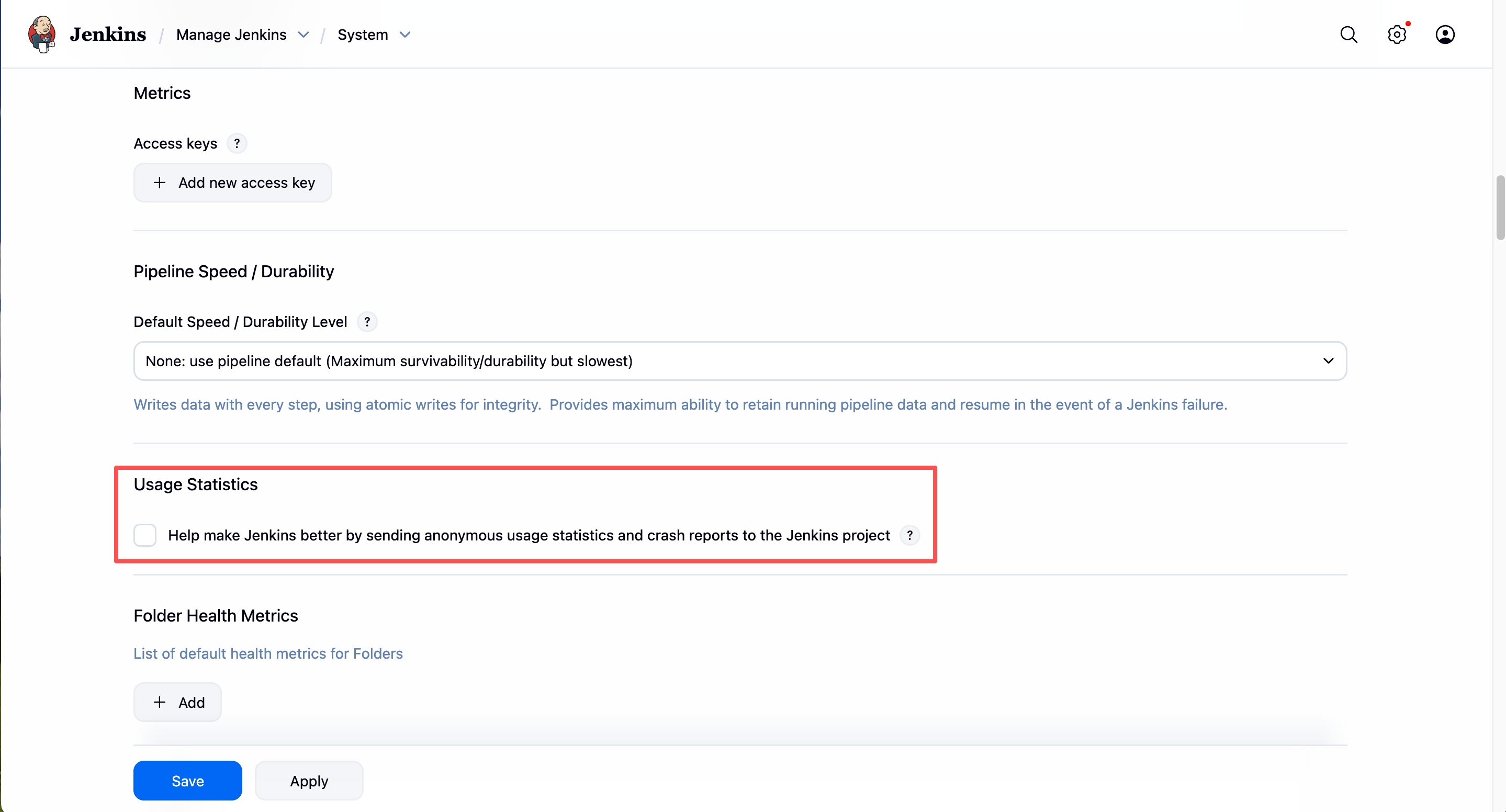

不发送使用统计

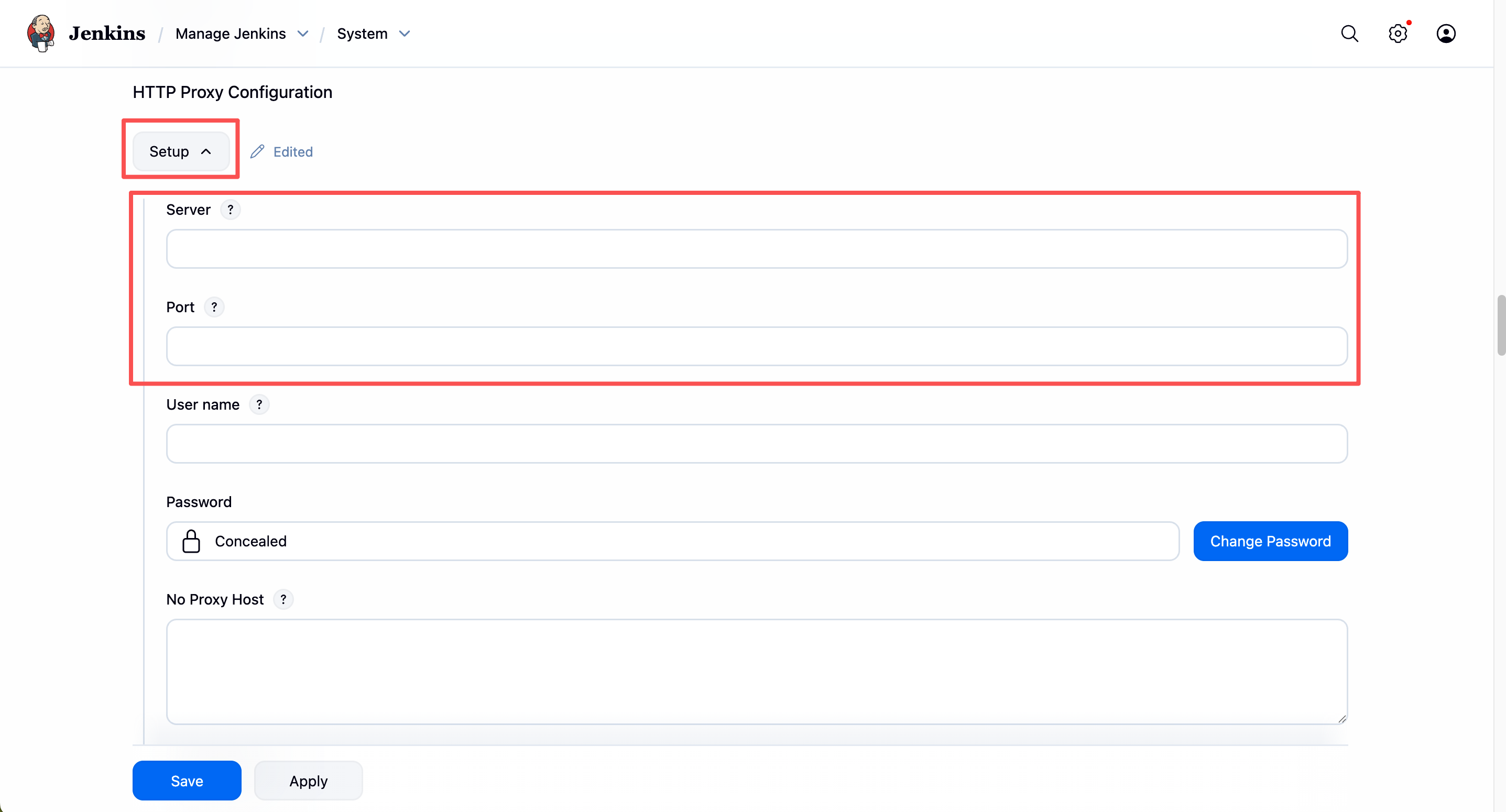

清除 HTTP 代理

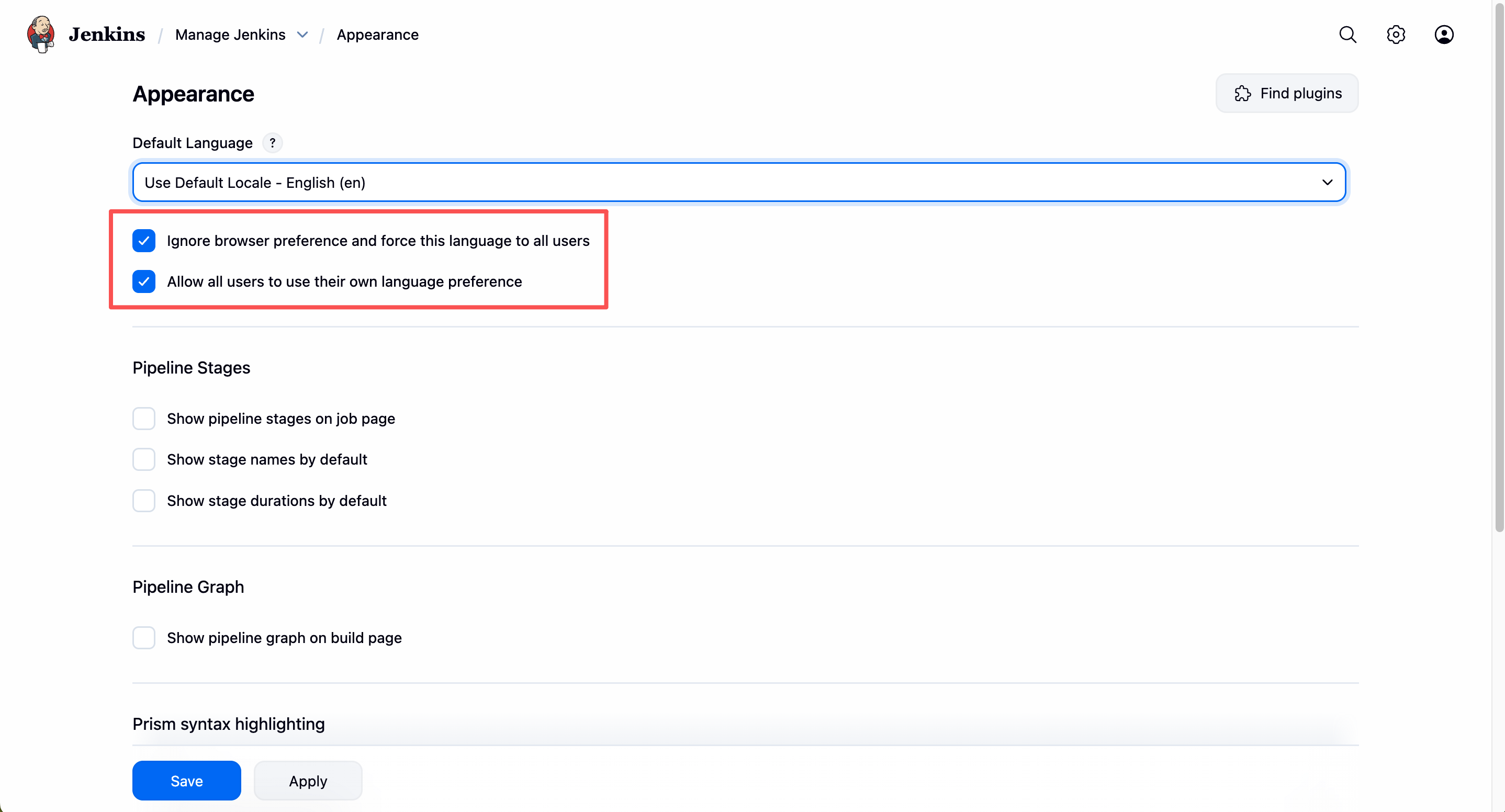

外观配置

Manage Jenkins -> System Configuration -> Appearance

Default Language：Use Default Locale - English (United States) (en_US)
✅ Ignore browser preference and force this language to all users
✅ Allow all users to use their own language preference

安全配置

Manage Jenkins -> System Configuration -> Security

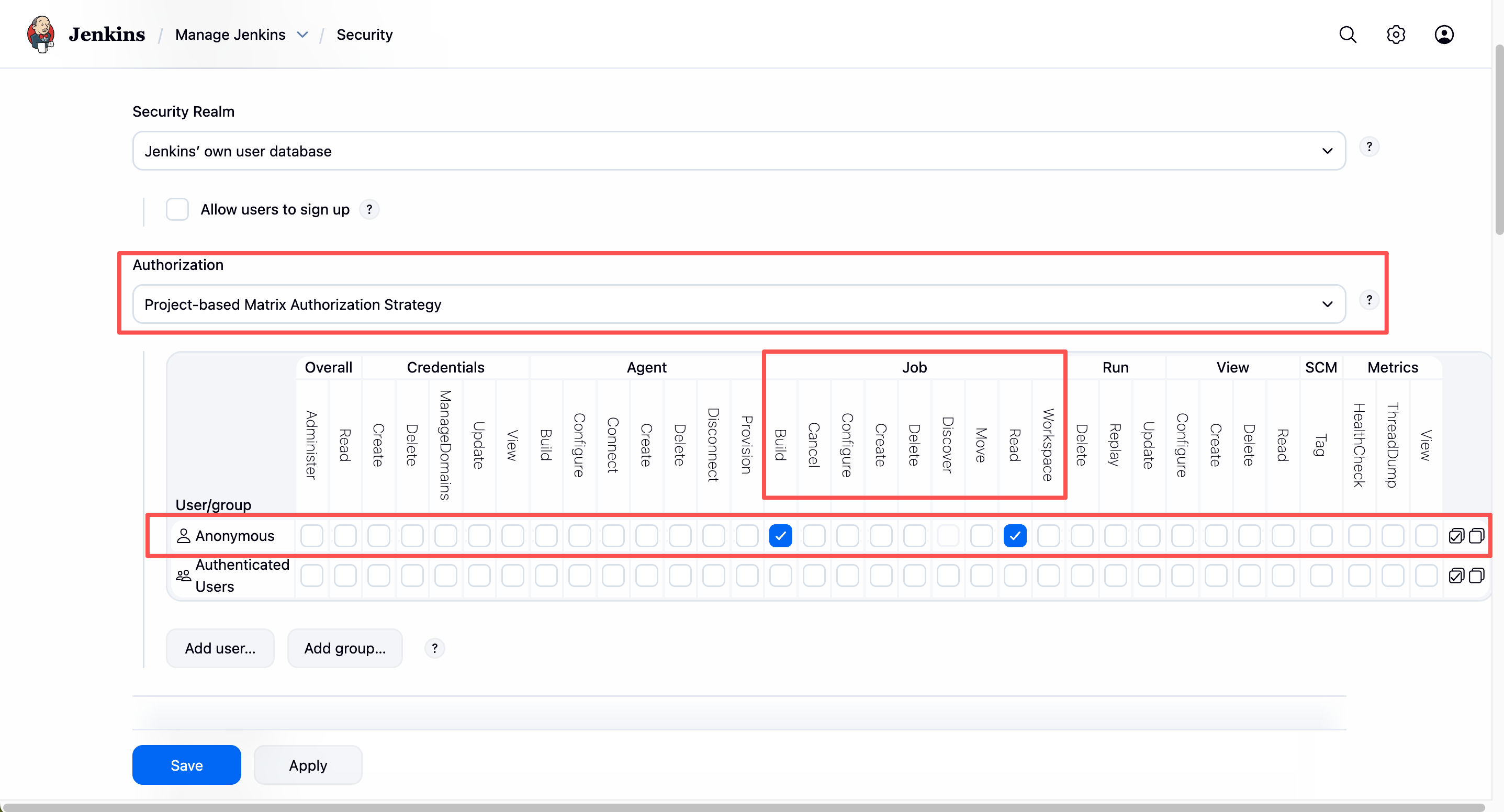

Authorization -> Project-based Matrix Authorization Strategy -> Anonymous -> 勾选 Job/Read 和 Job/Build
CSRF Protection -> Enable proxy compatibility

这两个配置是为了解决 GitLab 触发 Jenkins WebHook 时出现的错误

Hook executed successfully but returned HTTP 403 <html> <head> <meta http-equiv="Content-Type" content="text/html;charset=ISO-8859-1"/> <title>Error 403 anonymous is missing the Job/Build permission</title> </head> <body><h2>HTTP ERROR 403 anonymous is missing the Job/Build permission</h2> <table> <tr><th>URI:</th><td>/jenkins/project/ci-test</td></tr> <tr><th>STATUS:</th><td>403</td></tr> <tr><th>MESSAGE:</th><td>anonymous is missing the Job/Build permission</td></tr> <tr><th>SERVLET:</th><td>Stapler</td></tr> </table> <hr/><a href="https://jetty.org/">Powered by Jetty:// 12.0.25</a><hr/> </body> </html>

安装插件

Manage Jenkins -> System Configuration -> Plugins

安装以下插件：

Blue Ocean
Generic Webhook Trigger
Multibranch Scan Webhook Trigger
Pipeline: Stage View

Multibranch Scan Webhook Trigger 插件，用于 Multibranch Pipeline 设置 Webhook token

Scan Multibranch Pipeline Triggers -> Scan by webhook -> Trigger token

修改密码

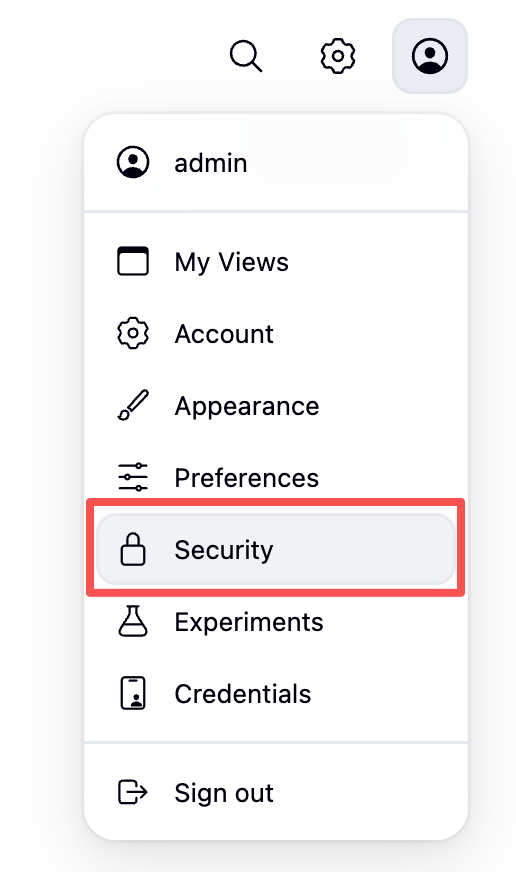

admin -> Security -> Password

重启 Jenkins

systemctl restart jenkins

更新 Jenkins

cd /data/jenkins/app/
ls -al
wget -c -O jenkins-2.528.3.war https://updates.jenkins.io/download/war/2.528.3/jenkins.war
ln -svf jenkins-2.528.3.war jenkins.war
chown -R jenkins:jenkins jenkins.*
systemctl restart jenkins.service
